PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine

Name: PRY4A6A Plastic Cup Curved Surface Multi Color Offset Printing Machine
Brand: PRINTYOUNG
Price: 2850 USD

Quality PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine for sale

Printing Diameter : 40 ~ 95 mm

Model Number : PRY-4A , PRY-6A

Delivery Time : 35 work days

Motor Power : 5.5 kw

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Max. Printing Speed : 12000 pcs/ h

General Power : 15 kw

Model : PRY-4A , PRY-6A

Max. Printing Slope : 15°

Machine Dimension : 3500 * 1900 * 2000 mm

Certification : CE

Place of Origin : China

Payment Terms : L/C, T/T

Supply Ability : 30 Sets per Month

Whole Machine Weight : 2.5 T

Max. Printing Width : 100 mm

Brand Name : PRINTYOUNG

MOQ : 1 Set

Price : USD 2850 ~ 3000 Set

Printing Edition Size : 300 * 105 * 1 mm

Contact Now

PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine

PRY-4A,6A Curved Surface Offset Printing Machine

Features

1.The machine adopts advanced technology at home and abroad,which is greatly updated in design,manufacturing and supporting,so that the machine is flexible,convenient, stable and reliable in operation,use and maintenance.
2.This machine adopt the horizontal cup feeding type to make the cup feeding be more steady before the printing,it has the electricity press treatment,clear and reliable printing.
3.Main motor adopt three phases frequency adjusting,synchronization belt transfer,stepless speed adjusting,steady operation,no noisy.
4.The ink supply amount can be adjusted,and the pressure adjustment of the ink roller is convenient and ideal for ink supply.
5.Each ink transfer group adopts an independent transmission mode,which can be controlled separately to save electricity and reduce mechanical wear,and increase the service life of the machine.
6.The internal and external pressure of the main ink transfer roller can be adjusted freely.
7.The installation of the printing plate is in a hanging layout,which saves printing plate fees and makes color matching easier.
8.The printing roller and printing plate roller are equipped with a cantilever type,and the separation and pressure adjustment are simple and reliable.
9.Automatic cups collection after printing,die head UV hardening,safe and reliable.
10.Automatic counting function,more convenient to use.
11.Can be customized according to customer needs.

Technical Parameters

Printing Diameter	40 ~ 95 mm
Max. Printing Width	100 mm
Printing Edition Size	300 * 105 * 1 mm
Max. Printing Slope	15°
Max. Printing Speed	12000 pcs/ h
Motor Power	5.5 kw
General Power	15 kw
Machine Dimension	3500 * 1900 * 2000 mm
Whole Machine Weight	2.5 T

Applications

This machine is for letterpress printing,which uses offset printing to print colored patterns, text,and trademarks on the surface of plastic (conical) products.It automatically prints multiple patterns at once;Widely applicable for surface printing of plastic products such as milk tea cups,beverage cups,yogurt cups,ice cream cups,plastic bowls,foam cups,etc.

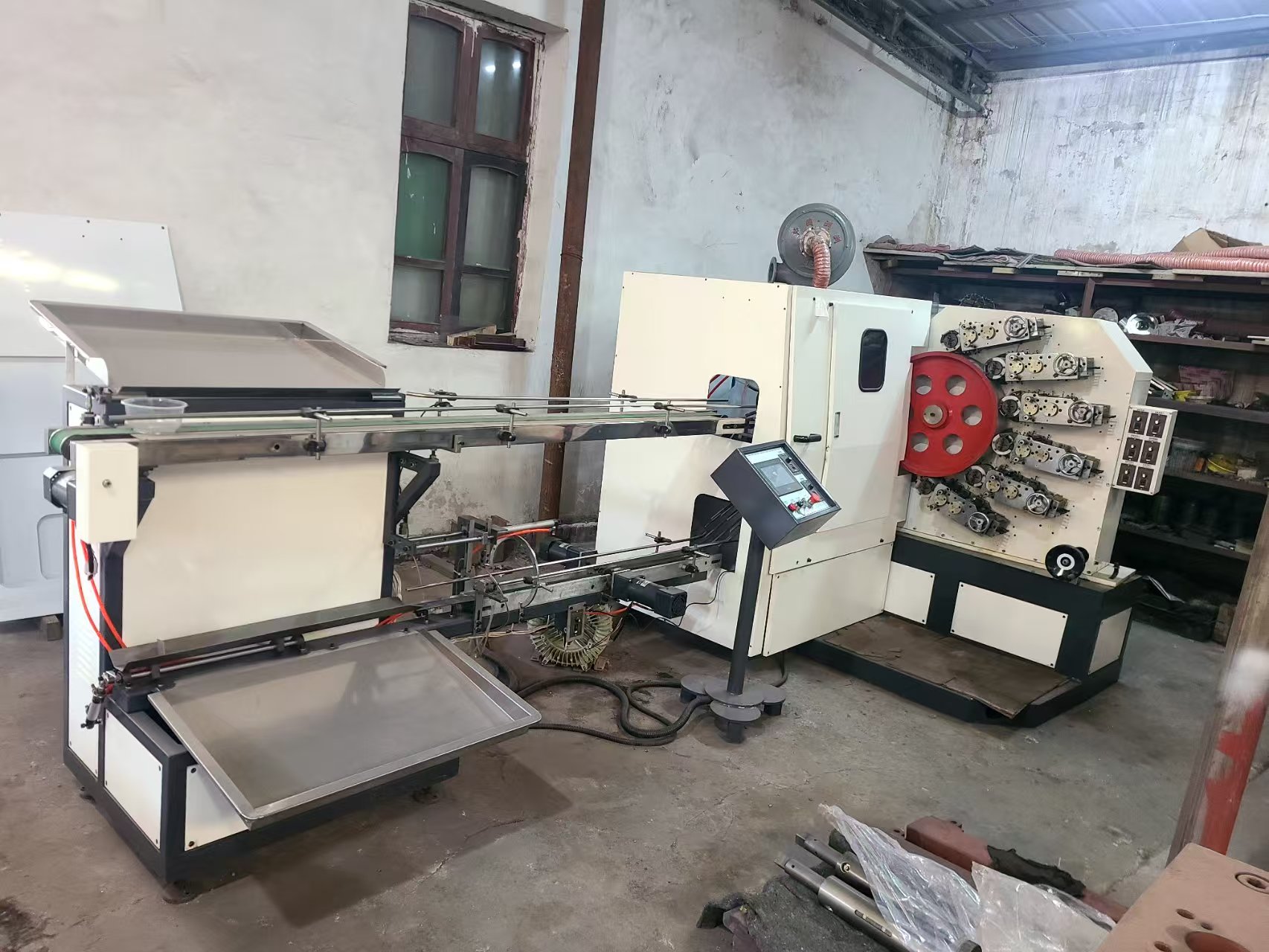

PRY-4A,6A Plastic Cup Curved Surface Multi Color Offset Printing Machine Images
