QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

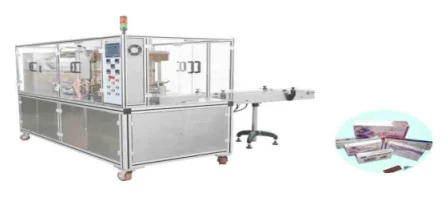

QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine

  • 1
  • 2

Brand Name : PRINTYOUNG

Model Number : QD-20B

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1 Set

Price : US 23000 Set

Payment Terms : T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Packaging Type : Bags

Packaging Material : Paper

Driven Type : Electric

Applicable Industries : Manufacturing Plant

Local Service Location : Egypt, Italy, Morocco, Algeria, South Africa

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Weight : 900 kg

Warranty : 1 Year

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Type : Wrapping Machine

Condition : New

Dimension : 2300 * 860 * 1670 mm

Packaging Speed : 12 - 30 box/min

Packaging Length : 65 - 270 mm

Packaging Width : 60 - 150 mm

Packaging Height : 20 - 90 mm

Conveyor Dimension : 1650 * 450 * 950 mm

Total Power : 6.5 kw

Voltage : 3N AC 380V 50Hz

Air Pressure : 0.6 - 0.8 Mpa

Contact Now

QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
Features
This machine is designed on the basis of absorbing,digesting and improving the advanced science and technology from Europe and Japan,using imported PLC control and electric components,which is drived by pneumatic cylinder,the servo motor controls the film falling, the setting and adjustment of the film length could be adjusted freely,at the advantage of stable and reliable operation,high speed,a firm packing,smooth and beautiful.The frame of machine is made up of imported high quality nice aluminium alloy or stainless steel and closed safe glass shield,it could do packing,feeding,folding,heat-sealing,counting and sticky tear tape automatically.malfunction automatic self-diagnosing and alarming,Changing few parts could wrap different specification (dimension,height,width) of different products.
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
Technical Parameters
QD-20B Cellophane Over Wrapping Machine
Packaging Speed
12 - 30 box/min
Packaging Length
65 - 270 mm
Packaging Width
60 - 150 mm
Packaging Height
20 - 90 mm

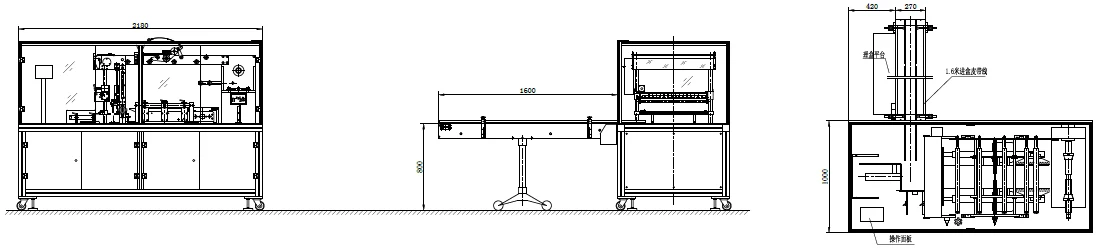

Machine Dimensions
2300 * 860 * 1670 mm
Conveyor Dimension
1650 * 450 * 950 mm
Weight
900 kg
Total Power
6.5 kw
Voltage
3N AC 380V 50Hz
Air Pressure
0.6 - 0.8 Mpa
Applications
Cellophane over wrapping machine is used for wrapping the square,rectangular and even trapezium shaped product with a layer of cellophane paper the same as the packaging of cigarette.Suitable for single and bundles packaging of various pharmaceuticals,condom, health-care products,confectionery,chewing gum,tea,coffees perfumes,cosmetics,notepad, scratchpad,stationery,eraser,digital media,VCD/DVD/CD cassette,tape,tobaccos,playing cards,napkin paper,etc.
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
QD-20B Adjustable Tree-Dimensional Cellophane Over Wrapping Machine
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
